How to Choose Plastic Floor Grating in 2026?

Choosing the right Plastic Floor Grating in 2026 requires more than comparing prices or surface patterns. A grating that looks strong in a showroom may flex under loaded carts, collect debris, or become slippery near wash areas. Real site conditions matter. Think of wet footwear, dropped tools, cleaning chemicals, temperature changes, and repeated maintenance traffic. These details can change the correct specification.

A dependable selection begins with load capacity, span length, opening size, surface texture, and drainage performance. Confirm whether the product is designed for pedestrian zones, plant rooms, food-processing areas, or industrial platforms. Ask suppliers for technical data, installation instructions, material details, and test evidence from recognized laboratories. Reputable manufacturers should explain resin type, reinforcement, UV resistance, fire behavior, and chemical compatibility clearly. Do not rely on vague claims such as “heavy duty.” They are not enough.

Installation also deserves careful attention. Supports must be level, properly spaced, and secured with suitable fixings. Poor spacing can cause movement, even when the grating itself is well manufactured. Local building, workplace safety, and accessibility requirements may also affect the final choice. These rules can vary by location, so verify current requirements with a qualified professional.

There is no universal answer.

This guide examines practical selection factors for 2026, while acknowledging an important limitation: product performance depends on design, installation, and maintenance together. A lower-cost option may work well in a light-duty walkway, but it may fail economically in a busy chemical washdown area. Careful comparison creates a safer, longer-lasting floor system.

Table of Contents [Hide]

1 What Is Plastic Floor Grating and Where Is It Used?

2 Which Plastic Grating Materials and Designs Are Available?

3 How to Evaluate Load Capacity, Safety, and Surface Performance

4 How to Match Grating Features to Environmental Conditions

5 How to Compare, Select, and Maintain Plastic Floor Grating in 2026

What Is Plastic Floor Grating and Where Is It Used?

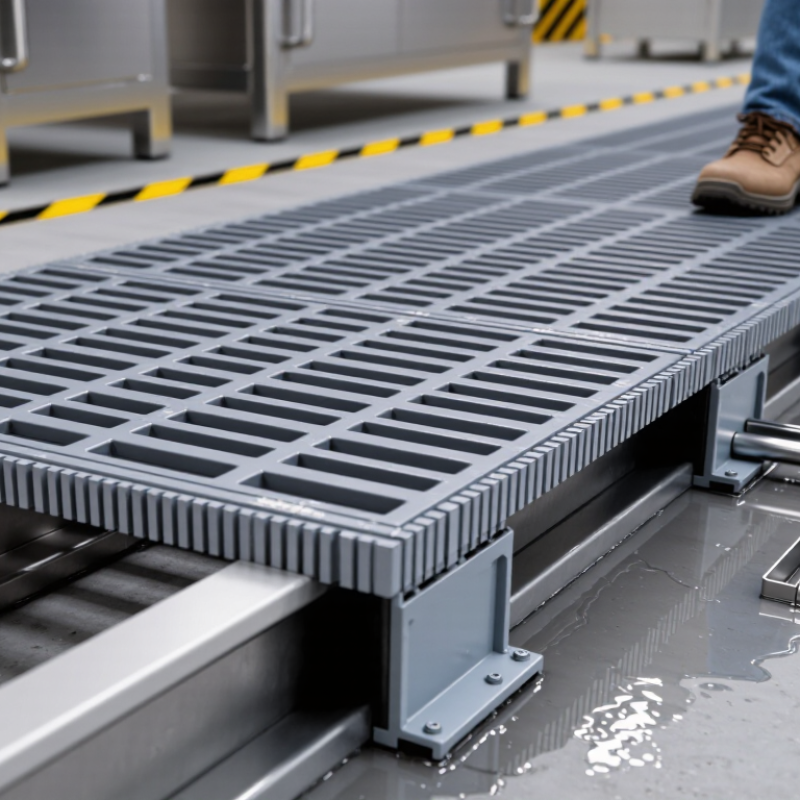

Plastic floor grating is a raised, open-panel flooring system made from thermoplastic or fiberglass-reinforced plastic. It creates a stable walking surface while allowing water, oil, and debris to drain below. Unlike steel, it does not rust, making it useful in wastewater plants, chemical processing areas, food facilities, marine platforms, and outdoor walkways.

Its value becomes clearer in wet workplaces. The U.S. Bureau of Labor Statistics recorded 865 fatal workplace falls, slips, and trips in 2022. That figure does not prove grating prevents accidents, but it supports careful floor design. Choose a panel with tested load capacity, suitable mesh openings, UV resistance, and a documented slip-resistant surface. ASTM standards can help verify testing methods. Still, field conditions matter more than a sales sheet. Mud changes everything.

Tips:

Check the support span before ordering. Smaller openings suit areas with small tools or narrow footwear. Confirm chemical compatibility with the facility’s actual cleaning agents. For heavy carts, ask for load tables and deflection data. A pale surface may improve visibility, but it can show stains faster. I have found that ignoring installation details causes more trouble than choosing the wrong color. Secure clips, accurate supports, and regular inspections remain essential.

Which Plastic Grating Materials and Designs Are Available?

In 2026, choosing plastic floor grating starts with the environment, not appearance. I have inspected panels in wet service corridors, rooftop walkways, and chemical wash areas. Fiberglass-reinforced plastic offers high stiffness, corrosion resistance, and useful load capacity. It suits platforms exposed to saltwater or cleaning chemicals. Polypropylene and high-density polyethylene are lighter and easier to cut on site. They work well around pools, drains, and temporary access routes. PVC can provide economical moisture resistance, but heat limits need careful checking. Material data matters more than color.

Design changes performance. Molded grating usually provides strong, integrated bearing bars and consistent openings. Pressed or pultruded profiles can reduce weight while supporting longer spans, depending on the structure. Small mesh openings help protect narrow heels and dropped tools. Larger openings drain rain quickly. Choose a grit surface for oily areas, yet remember that aggressive textures can trap dirt and complicate cleaning. Hinged sections, removable panels, and interlocking edges improve inspection access. Details decide. They may also create movement if supports are uneven.

Check rated loads, span tables, UV exposure, fire behavior, and temperature ranges against local requirements. A supplier should provide test evidence and installation guidance, not vague promises. I once saw a “heavy-duty” panel flex because its supports were spaced too far apart. The panel was not defective. The selection was incomplete. Sometimes, less is safer. Measure the opening, confirm fixing details, and allow for expansion.

How to Choose Plastic Floor Grating in 2026? – Which Plastic Grating Materials and Designs Are Available?

Material	Typical Construction	Common Temperature Range*	Moisture and Chemical Resistance	Slip-Resistance Options	Typical Floor Grating Designs	Best-Fit Applications	Main Selection Considerations
Fiberglass-Reinforced Polyester (FRP/GRP)	Molded or pultruded thermoset resin reinforced with glass fibers	Approximately -40°C to 93°C for many standard systems; higher-temperature grades may be available	Very good resistance to water, salt spray, many acids, alkalis, and industrial chemicals; exact compatibility depends on the resin	Concave molded surface, grit-insert surface, or covered top surface	Molded square mesh, rectangular mesh, pultruded bar grating, solid-top panels, stair treads	Wastewater plants, chemical facilities, marine walkways, cooling towers, platforms, and maintenance floors	Check resin type, load span, UV exposure, fire performance, and chemical concentration before specification
High-Density Polyethylene (HDPE)	Extruded, injection-molded, or rotationally molded thermoplastic panels	Approximately -50°C to 80°C for many grades	Excellent moisture resistance and good resistance to many dilute acids, alkalis, salts, and detergents; vulnerable to some strong oxidizers and hydrocarbons	Embossed, ribbed, perforated, or textured top surface	Drainage panels, modular walkway panels, perforated floor tiles, trench covers, and lightweight platforms	Wet rooms, food-processing areas, docks, agricultural facilities, temporary walkways, and wash-down zones	Allow for thermal expansion; confirm long-term creep, load capacity, and resistance to oils or solvents
Polypropylene (PP)	Injection-molded or extruded thermoplastic grating and modular tiles	Approximately -20°C to 80°C for many standard grades	Very good resistance to water, many acids, alkalis, and salts; performance varies with oxidizing chemicals and elevated temperature	Raised ribs, molded texture, open mesh, or perforated surface	Interlocking tiles, drainage grids, open mesh panels, and removable service-floor sections	Industrial wash areas, locker rooms, food-service spaces, pool surrounds, and light-duty chemical areas	Suitable for moderate loads; verify impact strength, support spacing, thermal movement, and chemical compatibility
Polyvinyl Chloride (PVC)	Rigid extruded or molded thermoplastic profiles and panels	Approximately 0°C to 60°C for many rigid grades	Good resistance to water, dilute acids, alkalis, salts, and many cleaning chemicals; solvent and heat resistance must be checked	Ribbed, perforated, embossed, or molded non-slip surface	Drainage grates, hygienic floor panels, cable-trench covers, and lightweight walkway sections	Commercial washrooms, changing rooms, light industrial areas, and indoor wet environments	Not normally the first choice for high-temperature areas or heavy concentrated loads; check brittleness at low temperatures
Chlorinated PVC (CPVC)	Heat-modified PVC thermoplastic construction	Often approximately 0°C to 90°C, depending on formulation and product design	Better temperature capability than standard PVC and good resistance to many aqueous chemicals; verify compatibility with concentrated chemicals	Molded ribs, textured surfaces, or open drainage patterns	Process-area walkways, chemical-service platforms, drainage covers, and equipment access floors	Applications requiring more heat resistance than standard PVC can provide	Compare cost, span capacity, fire behavior, and chemical compatibility with FRP before choosing
Nylon or Polyamide	Injection-molded engineering thermoplastic components or grating modules	Approximately -40°C to 100°C for many grades	Good mechanical performance; moisture absorption can affect dimensions and strength, while strong acids and some solvents may attack the material	Textured, ribbed, or molded anti-slip surface	Small modular panels, machine-area platforms, cable-management floors, and specialty access grates	Indoor industrial areas where toughness, impact resistance, and dimensional design flexibility are important	Account for water absorption, dimensional change, UV exposure, and chemical service conditions

*Temperature ranges are typical guidance for common unfilled or standard formulations, not universal product ratings. Final selection should be based on the manufacturer’s tested load tables, support spacing, deflection limits, fire requirements, UV exposure, chemical concentration, and applicable local safety standards.

How to Evaluate Load Capacity, Safety, and Surface Performance

How to Choose Plastic Floor Grating in 2026?

Plastic floor grating should be judged by tested performance, not appearance. Start with the required load: people, carts, stored materials, and occasional impact. Ask for span tables, deflection limits, and test conditions. A panel rated for uniform loading may fail under a small, concentrated wheel load. That difference is easy to miss.

Safety needs more than strength. OSHA 29 CFR 1910.22 requires walking-working surfaces to support their maximum intended load and remain clean, orderly, and sanitary. The U.S. Bureau of Labor Statistics recorded 885 fatal work injuries involving falls, slips, and trips in 2023. This figure makes surface design a practical safety decision. Check wet-slip performance, drainage openings, edge visibility, and fastening security. ASTM or equivalent test evidence is useful, but site conditions still matter. A textured surface can lose grip when grease fills its profile. I have seen this overlooked during dry inspections.

Tips

Request test reports, not only catalog ratings. Compare load results at the actual support spacing. Inspect the grating after chemical exposure, sunlight, and repeated cleaning. Confirm that openings will not trap footwear or small wheels. Choose a surface that drains quickly without creating sharp edges. Recheck the specification with a qualified engineer. Plastic is not automatically maintenance-free.

How to Choose Plastic Floor Grating in 2026?

Use the reference load values below as an initial screening tool. EN ISO 14122-2 specifies a 2.0 kN/m² uniformly distributed load and a 1.5 kN concentrated load on a 200 × 200 mm area for access platforms and walkways. These values are reference design actions, not universal product ratings.

Before purchasing, verify the manufacturer’s span-specific load tables, deflection limits, fire performance, chemical resistance, UV stability, and wet-slip test results. For level hard flooring, ANSI A326.3 commonly uses a wet dynamic coefficient of friction of 0.42 as a reference threshold; grating geometry and drainage conditions must still be evaluated separately.

How to Match Grating Features to Environmental Conditions

How to Choose Plastic Floor Grating in 2026?

When choosing plastic floor grating in 2026, start with the environment, not the lowest quoted price. Rain, cleaning chemicals, heat, and foot traffic can change performance quickly. For wet walkways, select grating with open drainage and a tested slip-resistant surface. Smaller openings help protect shoes and reduce trip risks near workshops or public access areas. Check the stated load rating against real conditions, including carts, stored materials, and occasional impact.

Chemical exposure requires closer attention. Review the manufacturer’s resistance data for acids, alkalis, oils, and disinfectants. Do not assume every plastic performs equally. A strong solution can weaken a material after repeated contact, even when the surface looks normal. In coastal areas, UV resistance and saltwater tolerance matter. Dark colors may become hotter under direct sunlight, which can affect comfort and dimensional stability.

Temperature also deserves practical testing. Measure the surface near ovens, pipes, or outdoor equipment before selecting a product. Confirm the support span, fixing method, and expected expansion. Field inspections often find loose edges rather than broken panels. That detail is easy to overlook. I would also request samples and test them with the actual footwear, cleaning routine, and drainage conditions. A perfect specification rarely exists, so record compromises clearly and inspect the installation after its first busy season.

How to Compare, Select, and Maintain Plastic Floor Grating in 2026

Choosing plastic floor grating in 2026 requires more than checking price and color.
Start with the site. Measure twice. Record foot traffic, trolley loads, span length, moisture, chemicals, and sunlight exposure. A drainage channel may need smaller openings, while a workshop may require stronger load-bearing panels. Compare resin type, panel thickness, open area, slip resistance, and temperature limits. Ask for verified load tables and test reports, not vague performance claims.

My first selection was too light for a wheeled cart. It looked sturdy, but flexing appeared at the unsupported center. That mistake taught me to check support spacing before ordering. A suitable panel should fit the frame without forced cutting or unstable gaps. Consider edge supports, fasteners, expansion, and replacement access. Textured surfaces can improve grip, although heavy texture may trap dirt. Samples are useful. They reveal more than photographs.

Maintenance is simple when inspections become routine. Remove grit from openings before it builds into a hard layer. Wash with a compatible detergent and inspect cracks, loose fasteners, discoloration, and excessive deflection. Avoid harsh solvents unless the manufacturer confirms chemical resistance. Keep records of cleaning dates and damaged sections. Plastic does not rust, but it can age under ultraviolet light, heat, impact, and chemical exposure. Some decisions remain uncertain. Real service conditions may differ from laboratory tests, so review performance after the first season and adjust the specification when needed.
