Top Galvanized Steel Grating Weight Guide for Buyers?
Buying steel grating often begins with a simple question: how much will each panel weigh? The answer is rarely simple. Galvanized Steel Grating Weight depends on panel length, width, bearing-bar depth, bar thickness, spacing, cross-rod design, and zinc coating. A 1,000 x 3,000 mm panel may look manageable on paper, yet become difficult to move when its steel mass, packaging, and lifting method are added. Small errors matter.
Tom Langill, a recognized galvanizing specialist at the American Galvanizers Association, explains, “The galvanizing process naturally produces a metallurgical bond between zinc and steel.” That coating adds protection, but it also adds measurable weight. Buyers should request the bare-steel weight and the final galvanized weight. Do not rely on a catalogue image. It can mislead.
A reliable estimate starts with the manufacturer’s mass-per-square-metre data. Then, confirm the exact panel dimensions. Check whether clips, frames, nosings, and supports are included. Ask for a certified drawing when the order is large or installation access is limited. A spreadsheet helps. It is not infallible.
Weight is not the same as load capacity. That distinction is often missed. A heavier grating may support more load, but not always. Bearing-bar span and structural support remain critical. This guide examines the practical details behind Galvanized Steel Grating Weight, helping buyers compare quotations, plan transport, and avoid expensive assumptions before production begins.
Galvanized Steel Grating Weight Basics: Steel Density of 7,850 kg/m³

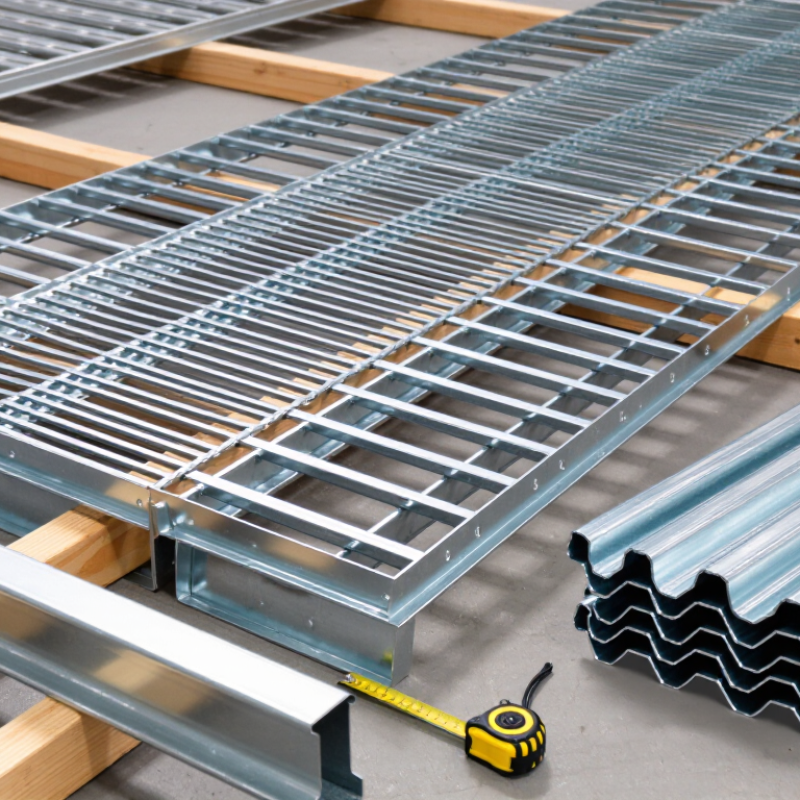

Top Galvanized Steel Grating Weight Guide for Buyers
Galvanized steel grating weight starts with one dependable constant: steel density is approximately 7,850 kg/m³. EN 1993-1-1, Eurocode 3, uses a steel unit weight of about 78.5 kN/m³, which matches this value. The basic formula is simple: weight equals volume multiplied by density. For grating, volume depends on panel length, width, bearing-bar depth, bearing-bar thickness, and cross-bar spacing.
Open space reduces material, but it does not make weight predictable by appearance alone. A panel measuring 1,000 mm by 2,000 mm may feel light, yet deeper bearing bars can raise its mass sharply. Buyers should request the manufacturer’s mass per square metre, not only a drawing. NAAMM MBG 531 provides industry guidance for metal bar grating dimensions, load tables, and fabrication details. Use those details to check whether the quoted weight matches the selected configuration.
Hot-dip galvanizing adds zinc.
The increase is usually modest, but it should not be ignored during transport planning or structural checks. ASTM A123/A123M establishes coating requirements, while the actual added mass depends on steel surface area and coating thickness. In field estimating, I would calculate bare steel weight first, then verify the galvanized delivery weight from the supplier’s certified data. An estimate can still be wrong. Welds, cut edges, trim frames, and tolerances may change the final figure. That small difference matters when a platform contains dozens of panels.
Top Galvanized Steel Grating Weight Guide for Buyers
Galvanized Steel Grating Weight Basics: Steel Density of 7,850 kg/m³
| Typical Configuration |
Bearing Bar Size
(Height × Thickness) |
Bearing Bar Pitch |
Cross Bar |
Panel Size Used for Calculation |
Estimated Bare Steel Weight
(kg/panel) |
Estimated Galvanized Weight
(kg/panel) |
Estimated Weight
(kg/m²) |
| Light-duty walkway |
30 × 3 mm |
30 mm |
6 mm round bar at 100 mm centers |
1,000 × 2,000 mm |
52.5 |
53.3 |
26.7 |
| General walkway |
30 × 5 mm |
30 mm |
6 mm round bar at 100 mm centers |
1,000 × 2,000 mm |
84.5 |
85.8 |
42.9 |
| Medium-duty platform |
40 × 3 mm |
30 mm |
6 mm round bar at 100 mm centers |
1,000 × 2,000 mm |
68.5 |
69.5 |
34.8 |
| Industrial platform |
40 × 5 mm |
30 mm |
6 mm round bar at 100 mm centers |
1,000 × 2,000 mm |
111.2 |
112.9 |
56.5 |
| Heavy-duty platform |
50 × 5 mm |
30 mm |
6 mm round bar at 100 mm centers |
1,000 × 2,000 mm |
137.9 |
140.0 |
70.0 |
| High-load platform |
60 × 5 mm |
30 mm |
6 mm round bar at 100 mm centers |
1,000 × 2,000 mm |
164.6 |
167.1 |
83.5 |
Important: The galvanized weights include an estimated 1.5% zinc coating allowance.
Actual delivered weight may vary with coating thickness, panel tolerance, trimming, end plates, bearing-bar spacing,
cross-bar type, and optional support frames.
| Steel density used |
7,850 kg/m³ for carbon steel |
| Reference panel |
1,000 mm wide × 2,000 mm long, equal to 2.00 m² |
| Bearing-bar quantity |
34 bearing bars across the 1,000 mm panel width at approximately 30 mm nominal pitch |
| Cross-bar quantity |
20 round cross bars across the 2,000 mm panel length at 100 mm nominal centers |
| Bare steel calculation |
Bearing-bar volume × 7,850 kg/m³, plus the calculated volume of the cross bars |
| Galvanized weight calculation |
Bare steel weight × 1.015; this is a planning estimate rather than a certified shipping weight |
| Buyer comparison tip |
Compare grating by panel dimensions, bearing-bar size, pitch, cross-bar type, surface finish, and whether framing is included. |
How to Calculate Grating Weight from Bearing Bars, Cross Bars, and Span
Top Galvanized Steel Grating Weight Guide for Buyers
Grating weight starts with the bearing bars, not the zinc finish. Measure each bar’s width, thickness, and cut length. Then multiply by the quantity installed. The basic formula is: steel volume × 7,850 kg/m³. This density is used in the AISC Steel Construction Manual for carbon steel. For a 1-metre-wide panel with 34 bearing bars, each 30 × 5 mm and 3 metres long, the bearing-bar volume is about 0.0153 m³. Its estimated mass is approximately 120 kilograms.
Cross bars add more weight. Include their diameter or section size, spacing, and total length. For example, thirty 6-mm round cross bars, each 1 metre long, add roughly 6.7 kilograms. The estimated bare-steel mass becomes about 127 kilograms. Welding, end plates, clips, and cut-outs can change the result. Small details matter.
Span affects the calculation indirectly. A longer span may require deeper or thicker bearing bars, increasing mass and deflection resistance. NAAMM MBG 531 identifies bearing-bar dimensions and spacing as key grating design variables. Galvanizing usually adds a small allowance, but the exact increase depends on coating thickness and surface area. ISO 1461 controls coating requirements, not a universal percentage. Treat supplier tables as practical estimates, not absolute truth. Job-site measurements can expose errors.
Zinc Coating Weight: ASTM A123 Requires Up to 610 g/m²
Top Galvanized Steel Grating Weight Guide for Buyers?
Galvanized grating weight includes steel, zinc, and sometimes lifting accessories. The key figure is zinc coating weight. ASTM A123 specifies coating requirements by steel thickness. For structural steel over 6.4 millimeters, the minimum average coating weight can reach 610 g/m², equal to about 2.00 oz/ft². Thinner sections require lower minimums, such as 275, 381, or 505 g/m². These figures come from ASTM A123 coating tables, not simple supplier estimates.
A 610 g/m² coating adds roughly 0.61 kilograms for each square meter of coated surface. Actual finished weight depends on bar size, panel dimensions, drainage openings, and the measurement method. ISO 1461 also separates average coating values from local minimum values. That difference matters. A panel may pass testing while showing small thickness variations near edges or welds. The American Galvanizers Association’s technical guidance reports that zinc protection can provide decades of service, but exposure, abrasion, and stagnant moisture shorten performance. One detail deserves doubt: coating weight alone cannot predict total service life.
Tips: Ask for the dry steel weight and galvanized weight separately. Request the coating test method, sample location, and average result. Check whether the quoted 610 g/m² applies to the actual steel thickness. A rushed comparison can misprice an entire shipment.
Galvanized Steel Grating Zinc Coating Weight Guide
ASTM A123/A123M minimum average coating weight for structural steel products
ASTM A123/A123M specifies higher minimum zinc coating weights as steel thickness increases. For structural steel products thicker than 6.4 mm, the minimum average coating weight reaches 610 g/m², equal to approximately 0.61 kg of zinc per square metre of coated steel surface. Actual galvanized grating weight also depends on bearing-bar size, spacing, cross-bar design, panel dimensions, and the steel mass before galvanizing.
Weight Comparison by Common Bearing Bar Sizes, Including 25×5 mm
Galvanized steel grating weight changes sharply with bearing bar depth and thickness. Using 30 mm bearing-bar centers, 100 mm cross-bar spacing, and a 6 mm cross bar, practical estimates are: 25×3 mm, 22–23 kg/m²; 25×5 mm, 35–36 kg/m²; 32×5 mm, 44–45 kg/m²; 40×5 mm, 55–56 kg/m²; and 50×5 mm, 68–70 kg/m². These figures combine calculated steel mass with an estimated zinc coating allowance. The calculation uses steel density of approximately 7,850 kg/m³, consistent with structural-steel data used in EN 10025 applications.
The 25×5 mm option is often a useful middle point. It offers noticeably more stiffness than 25×3 mm, while remaining easier to handle than 40×5 mm panels. However, spacing changes everything. A 30 mm pitch carries more bearing bars per square metre than a 40 mm pitch, increasing weight without changing the bar size. EN ISO 1461 specifies minimum average zinc coating masses, including about 505 g/m² for steel between 3 and 6 mm thick. The actual finished weight can still vary because grating geometry exposes many side surfaces. That detail is easy to miss. The Steel Grating Institute’s loading guidance also separates bar size, span, and spacing, so weight alone cannot confirm suitability. In purchasing checks, I would request the manufacturer’s net panel weight, coating standard, and dimensional tolerance. Calculated values are useful, but they are not a certified weighbridge result.
Buyer’s Checklist: Verify Dimensions, Load Class, Coating, and Tolerances
Top Galvanized Steel Grating Weight Guide for Buyers
Weight begins with verified dimensions, not a catalogue estimate. Record panel length, width, bearing-bar depth, thickness, spacing, and cross-bar type. The density of structural steel is about 7,850 kg/m³ under EN 1991-1-1. Calculate the bare steel weight first, then request the actual galvanized weight. Zinc adds mass, but the increase varies with surface area and coating reaction. I have seen estimates miss several kilograms on large panels.
Do not accept “heavy duty” as a load class. Ask for the design load, span, deflection limit, and intended use. EN 1991-1-1 assigns imposed loads by occupancy category, while project standards may define different grating classes. A loading dock and a maintenance walkway need different checks. Confirm whether the stated load is concentrated or uniformly distributed. This detail is often overlooked.
Coating documentation should state the standard and measured thickness. ISO 1461 specifies minimum average coating thicknesses, including 85 micrometres for fabricated steel over 6 mm thick. Verify whether the report covers every component, including cut edges and weld zones. Check flatness, squareness, panel length, and bearing-bar alignment against the named tolerance standard, such as NAAMM MBG 531. My own mistake was trusting a rounded weight without checking tolerances. Ask for certified measurements, not only a sales-sheet number.
